FCJ Armored Direct Buried Underground Fiber Optic Cable 2 24 48 96 144 Core GYTY53
- group name
- Direct Burial Fiber Optic Cables
- Min Order
- 1 kilometer
- brand name
- FCJ Fiber Optic Products Manufacturer
- model
- GYTY53
- Nearest port for product export
- shanghai, Ningbo, Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, L/C, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:06:12 GMT
Paramtents
Number of Conductors ≥ 10
Fiber Type G652D/Multimode
Armored Yes
Operating Temperature -40°C to + 70°C
Installation Aerial/Direct Buried/Duct
Transport Package Wooden Drums or as Per Customers′ Requests
Packging & Delivery
-
Min Order1 kilometer
Briefing
Detailed

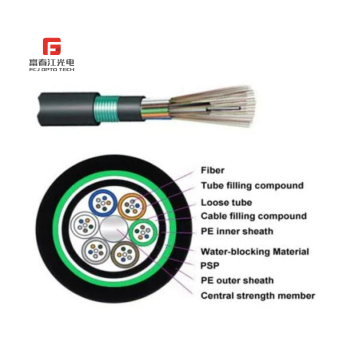

GYTY53 Armored Loose Tube Double Jacket/Double Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
- Water-blocking material
GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
|
@1300nm |
≥1000 MHz·km | ≥600 MHz·km | |||
|
Numerical Aperture |
0.200±0.015NA | 0.275±0.015NA | |||
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|||
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
GYTY53-2~6 | 2~6 | 1 | 4 | 13.8 | 118 | 1000/3000 | 1000/3000 | 10D/20D |
|
GYTY53-8~12 |
8~12 |
2 |
3 |
13.8 | 118 | 1000/3000 | 1000/3000 | 10D/20D |
|
GYTY53-14~18 |
14~18
|
3
|
2 |
13.8 | 118 | 1000/3000 | 1000/3000 | 10D/20D |
|
GYTY53-20~24 |
20~24
|
4
|
1 |
13.8 | 118 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-26~30 | 26~30 | 5 | 0 | 13.8 | 118 | 1000/3000 | 1000/3000 | 10D/20D |
|
GYTY53-32~36 |
32~36
|
6
|
0 |
13.8 | 118 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-38~48 | 38~48 | 4 | 1 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-50~60 | 50~60 | 5 | 0 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-62~72 | 62~72 | 6 | 0 | 15.0 | 215 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-74~84 | 74~84 | 7 | 1 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-86~96 | 86~96 | 8 | 0 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-98~108 | 98~108 | 9 | 1 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-110~120 | 110~120 | 10 | 0 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-122~132 | 122~132 | 11 | 1 | 19.5 | 340 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-134~144 | 134~144 | 12 | 0 | 19.5 | 340 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-146~216 | 146~216 | 19.5 | 345 | 1000/3000 | 1000/3000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
