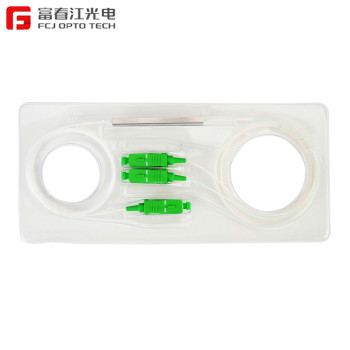

FCJ factory Micro tube PLC splitter Sc/APC FTTH Splitter PLC Splitter Single Mode Connector

group name: Micro PLC Splitters

Min Order: 1000 piece

brand name: FCJ Fiber Optic Products Manufacturer

model: FCJ-MPLC-1X* SC/APC

Nearest port for product export: shanghai, Ningbo, Shenzhen, Guangzhou

Delivery clauses under the trade mode: FOB, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 19:21:57 GMT

contact supplier

Paramtents

Fiber Type G652D/Multimode
Operating Temperature -40°C to + 70°C
Transport Package Plastic Boxes, white box or customized
PLC type Mircro tube
Connector SC/APC, SC/PC

Packging & Delivery

Min Order1000 piece

Briefing

PLC Splitters 1x(2,4...128) or 2x(2,4...128) (Micro: no connector,SC/UPC,SC/APC...,FC optional),Planar lightwave circuit (PLC).

Detailed

Description

PLC Splitters 1x(2,4...128) or 2x(2,4...128) (Micro: no connector,SC/UPC,SC/APC...,FC optional),Planar lightwave circuit (PLC). The splitter is an optical power management device manufactured using silicon optical waveguide technology, which is used to distribute optical signals from Central Office (CO) to multiple locations. It is the result of the miniaturization of the tape separator. It is mainly used for various connections and distribution boxes or network cabinets.

Features

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS

Application

LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net

1x (2,4 ... 128) or 2x (2,4 ... 128) micro PLC splitter, in the fiber to the home PLC splitter can integrate multiple functions into a single chip to significantly Reduce the size. It is widely used in PON network to realize optical signal power management.

Special reminder: The optical splitter can be customized, the maximum is 1X128 or 2X128.

Product Details

1X N（N≥2）
PARAMETERS		1×2	1×4	1×8	1×16	1×32	1×64	1×128
Wavelength (nm)		1260～1650
Fiber type		G657A 1or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤3.8	≤7.2	≤10.3	≤13.6	≤16.9	≤20.4	≤23.5
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		40×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Micro package size(Lx W x H)mm		55×7×4			60×12×4	80×20×6	100×40×6	1205012
2X N（N≥2)
PARAMETERS		2×2	2×4	2×8	2×16	2×32	2×64	2×128
Wavelength (nm)		1260～1650
Fiber type		G657A 2 or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤4.2	≤7.5	≤10.6	≤13.9	≤17.2	≤20.8	≤23.8
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		50×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Micro package size(LxWxH)mm		60×7×4			60×12×4	80×20×6	100×40×6	1205012
Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss
