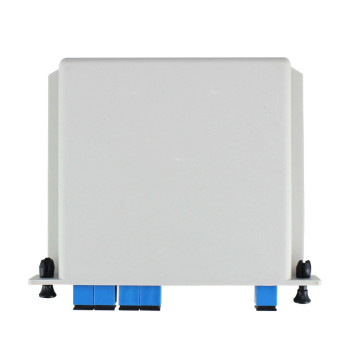

FCJ Manufacturing FTTH SC G657A1 cassette box fiber PLC Splitter

group name: Box Type PLC Splitters

Min Order: 1000 piece

brand name: FCJ Fiber Optic Products Manufacturer

model: Blockless Splitter

Nearest port for product export: shanghai, Ningbo, Shenzhen, Guangzhou

Delivery clauses under the trade mode: FOB, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, PayPal, Westem Union

update time: Mon, 20 May 2024 11:18:22 GMT

contact supplier

Paramtents

Fiber Type G652D/Multimode
Operating Temperature -40°C to + 70°C
Transport Package Plastic Boxes or as Per Customers′ Requests

Packging & Delivery

Min Order1000 piece

Briefing

Blockless Splitter series are applicable in FTTH project and suitable for outdoor application.

Detailed

Description

Blockless Splitter (FDB) series are applicable in FTTH project and suitable for outdoor application. They can distribute cables with a splitter. They have the subsequent functions of mechanical splice, fusion splice, distributions, etc. Note: This box comes with splice tray, but no any adapters, pigtails or fiber splitters.

Features

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS

Application

● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systems

1x(2,4...128) or 2x(2,4...128) PLC Splitter in FTTH Solution

The standard LGX box PLC splitter /Insert type PLC splitter provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployment. The following figure shows 1x4 LGX PLC Splitter applied in the 1U rack chassis in GPON network.

Product Details

1X N（N≥2）

PARAMETERS		1×2	1×4	1×8	1×16	1×32	1×64	1×128
Wavelength (nm)		1260～1650
Fiber type		G657A 1or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤3.8	≤7.2	≤10.3	≤13.6	≤16.9	≤20.4	≤23.5
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		40×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(Lx W x H)mm		55×7×4			60×12×4	80×20×6	100×40×6	1205012

2X N（N≥2）

PARAMETERS		2×2	2×4	2×8	2×16	2×32	2×64	2×128
Wavelength (nm)		1260～1650
Fiber type		G657A 2 or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤4.2	≤7.5	≤10.6	≤13.9	≤17.2	≤20.8	≤23.8
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		50×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(LxWxH)mm		60×7×4			60×12×4	80×20×6	100×40×6	1205012

Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss
