Bare Splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette

Detailed

Description

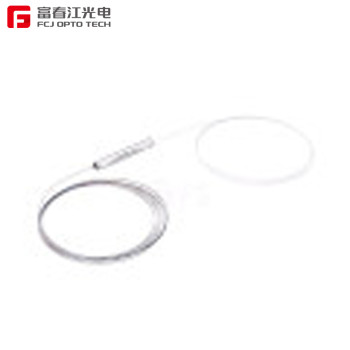

Bare Splitter no Connector 1x(2,4...128) or 2x(2,4...128). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Features

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS

Application

● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systems

1x(2,4...128) or 2x(2,4...128) Bare PLC Splitter in FTTH Solution: The bare PLC splitter can allow a single GPON network interface to be shared among many subscribers and allow service providers to enable bandwidth-intensive applications. The following figure shows 1X4 bare PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

Simple and Easy Connection:Bare PLC splitter can be easily installed in fiber splice closure or fiber splitter distribution box for space saving.

Product Details

1X N（N≥2）

PARAMETERS		1×2	1×4	1×8	1×16	1×32	1×64	1×128
Wavelength (nm)		1260～1650
Fiber type		G657A 1or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤3.8	≤7.2	≤10.3	≤13.6	≤16.9	≤20.4	≤23.5
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		40×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(Lx W x H)mm		55×7×4			60×12×4	80×20×6	100×40×6	1205012

2X N（N≥2）

PARAMETERS		2×2	2×4	2×8	2×16	2×32	2×64	2×128
Wavelength (nm)		1260～1650
Fiber type		G657A 2 or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤4.2	≤7.5	≤10.6	≤13.9	≤17.2	≤20.8	≤23.8
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(d B)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		50×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(LxWxH)mm		60×7×4			60×12×4	80×20×6	100×40×6	1205012

Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss
