FCJ factory MGXTSWV for Duct Fcj Opto Tech 4-96 Core G652D Central mining cable Fiber Optic Cable

group name: Micro Air Blown Fiber Optic Cables

Min Order: 1 kilometer

brand name: FCJ Fiber Optic Products Manufacturer

model: Central mining cable

Nearest port for product export: shanghai, Ningbo, Shenzhen, Guangzhou

Delivery clauses under the trade mode: FOB, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 19:41:25 GMT

contact supplier

Paramtents

Fiber Type G652D/G657/Multimode
Operating Temperature -40°C to + 70°C
Installation Aerial/Direct Buried/Duct
Transport Package Wooden Drums or as Per Customers′ Requests

Packging & Delivery

Min Order1 kilometer

Briefing

MGXTSWV Central mining cable , the fibers,200μm or 250μm, are positioned in a loose tube made of a high modulus plastic.

Detailed

Description

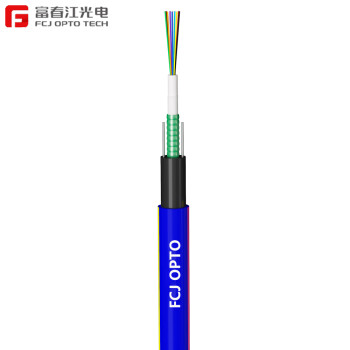

MGXTSWV Central mining cable , the fibers,200μm or 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, over a thin inner PE sheath, the cable is completed with a polyethylene (PE) outer sheath.

Characteristics

·Good mechanical and temperature performance

·High strength loose tube has good performance of water proof and high strength

·Special tube filling compound ensure a critical protection of fiber

·Crush resistance.

·Two parallel steel wires ensure tensile strength

·PSP enhancing moisture-proof and anti rodent

·Good water resistance material prevent longitudinal seepage

·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.

Standards

·MGXTWV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.22dB/km
Bandwidth（Class A）	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth（Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
MGXTSWV-2～12	2～12	11	130	500/1000	500/1500	15D/30D

Storage/Operating Temperature : -40℃ to + 70℃
