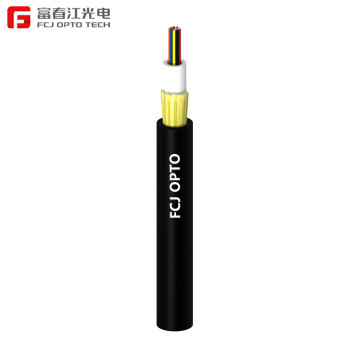

FCJ factory Center tube micro cable G652D/G657A1/G657A2/Multimode Air Blow Fiber Cable
- group name
- Micro Air Blown Fiber Optic Cables
- Min Order
- 1 kilometer
- brand name
- FCJ Fiber Optic Products Manufacturer
- model
- Center tube micro cable
- Nearest port for product export
- shanghai, Ningbo, Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, L/C, Credit Card, PayPal, Westem Union
- update time
- Wed, 27 Sep 2023 10:39:43 GMT
Paramtents
Number of Conductors ≥ 10
Fiber Type G652D/Multimode
Armored Yes
Operating Temperature -40°C to + 70°C
Installation Aerial/Direct Buried/Duct
Transport Package Wooden Drums or as Per Customers′ Requests
Packging & Delivery
-
Min Order1 kilometer
Briefing
Detailed
Perfect cable structure with high fiber density，Accurate fiber length balance to ensure stable performance.
Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
No gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance
Fiber: G.G652D, G.657A1, G657A2 & multimode fiber
Specification
P/N | Fiber count | Nominal diameter | Nominal weight | Max tensile strength | Temperature |
MICROC-2G652D-PE | 2 | 4.0±0.1 | 10 | 120 | -40 to +60 |
|
MICROC-4G652D-PE |
4 | 4.0±0.1 |
10 |
120 |
|
MICROC-6G652D-PE | 6 | 4.0±0.1 | 10 | 120 | |
|
MICROC-8G652D-PE |
8 | 4.0±0.1 |
10 |
120 |
|
|
MICROC-12G652D-PE |
12 | 4.0±0.1 |
10 |
120 |
|
|
MICROC-24G652D-PE |
24 | 4.5±0.1 |
14
|
150 |
Blowing Performance
Fiber count | Blowing machine | Suitable microduct | Blowing pressure | Blowing distance in 7/5.5 duct (m) | Blowing distance in 10/8 duct (m) |
2 to 12 | PLUMETTAZ PR-196 or PR-140 | 7/5.5 or 10/8 | 15 | 1500 | 2500 |
14 to 24 | 7/5.5 or 10/8 | 1300 | 2200 |
About P/n:Micro 2g652d-pe
MICROC: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 & multimode fiber available | PE: sheath material
