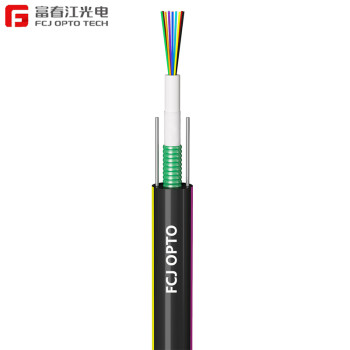

FCJ factory GYXTW Outdoor Duct Aerial Uni-tube Light-armored Cable

group name: Direct Burial Fiber Optic Cables

Min Order: 1 kilometer

brand name: FCJ Fiber Optic Products Manufacturer

model: GYXTW

Nearest port for product export: shanghai, Ningbo, Shenzhen, Guangzhou

Delivery clauses under the trade mode: FOB, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:23:39 GMT

contact supplier

Paramtents

Number of Conductors ≥ 10
Fiber Type G652D/Multimode
Armored Yes
Operating Temperature -40°C to + 70°C
Installation Aerial/Direct Buried/Duct
Transport Package Wooden Drums or as Per Customers′ Requests

Packging & Delivery

Min Order1 kilometer

Briefing

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

Detailed

Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics

· Good mechanical and temperature performance

· High strength looes tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Crush resistance and flexibility

· The following measures are taken to ensure the cable watertight:

- Steel wire used as the central strength member

- Loose tube filling compound

- 100% cable core filling

- PSP enhancing moisture-proof

- Water-blocking material

Standards

GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GYXTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
