FCJ factory GYFXY Non-metallic Unitube Non-Armored Gyfxy Fiber Optic Cable for Aerial Outdoor

group name: Aerial Fiber Optic Cables

Min Order: 1 kilometer

brand name: FCJ Fiber Optic Products Manufacturer

model: GYFXY Non-metallic

Nearest port for product export: shanghai, Ningbo, Shenzhen, Guangzhou

Delivery clauses under the trade mode: FOB, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, PayPal, Westem Union

update time: Thu, 21 Nov 2024 17:19:19 GMT

contact supplier

Paramtents

Number of Conductors ≥ 10
Fiber Type G652D/Multimode
Armored Yes
Operating Temperature -40°C to + 70°C
Installation Aerial/Direct Buried/Duct
Transport Package Wooden Drums or as Per Customers′ Requests

Packging & Delivery

Min Order1 kilometer

Briefing

GYFXY Non-metallic ,the fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

Detailed

Description

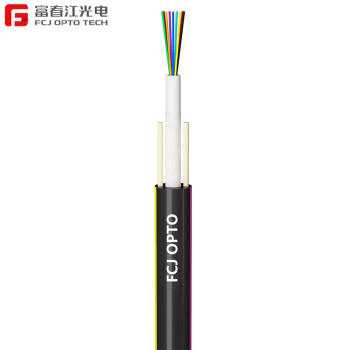

GYFXY Non-metallic ,The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

Characteristics

· Good mechanical and temperature performance

· High strength loose tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Two parallel FRPs ensure tensile strength

· PE sheath protects cable from ultraviolet radiation

· Small diameter, light weight and friendly installation

· Long delivery length

Standards

GYFXY cable complies with Standard YD/T 769-2010.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type (Increased by 2 fibers)	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYFXY -2~12	2~12	8.6	65	400/1000	300/1000	10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
