FCJ factory GYFTY Non-Armored Aerial & Underground Single Mode Fiber Optic Cable
- group name
- Aerial Fiber Optic Cables
- Min Order
- 1 kilometer
- brand name
- FCJ Fiber Optic Products Manufacturer
- model
- GYFTY Non-Armored
- Nearest port for product export
- shanghai, Ningbo, Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, L/C, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 22:31:17 GMT
Paramtents
Certification RoHS, UL, CE, ISO9001, VDE, CCC
Brand Fcj Opto Tech
Sheath Material PE
Cable Application Aerial
Loose Tube Type PBT Central Tube Type
Transport Package Wooden Drum and Carton
Specification 2KM, 3KM，4KM
HS Code 8544700000
Service Life More Than 30years
Working Temp. -40~+60 Centigrade
Packging & Delivery
-
Min Order1 kilometer
Briefing
Detailed

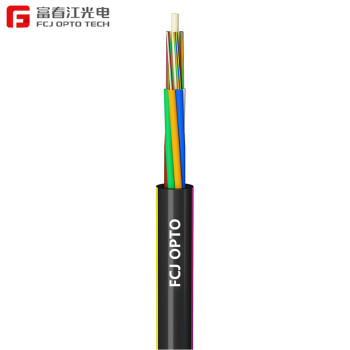

GYFTY Non-Armored ,The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
GYFTY cable complies with Standard YD/T 901-2018 as well as IEC 60794-1.
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
|
@1300nm |
≥1000 MHz·km | ≥600 MHz·km | |||
|
Numerical Aperture |
0.200±0.015NA | 0.275±0.015NA | |||
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|||
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
|
GYFTY-8~12 |
8~12 |
2 |
4 |
10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
|
GYFTY-14~18 |
14~18
|
3
|
3 |
10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
|
GYFTY -20~24 |
20~24
|
4
|
2 |
10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
|
GYFTY-32~36 |
32~36
|
6
|
0 |
10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 6 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 5 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 4 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 3 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 2 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 1 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 0 | 11.0 | 97 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 4 | 2 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 1 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 0 | 12.0 | 113 | 600/1500 | 300/1000 | 10D/20D |
GYFTY-2~6 | 2~6 | 1 | 7 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-8~12 | 8~12 | 2 | 6 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-14~18 | 14~18 | 3 | 5 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-20~24 | 20~24 | 4 | 4 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-26~30 | 26~30 | 5 | 3 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-32~36 | 32~36 | 6 | 2 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-38~42 | 38~42 | 7 | 1 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-44~48 | 44~48 | 8 | 0 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-50~60 | 50~60 | 5 | 2 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-62~72 | 62~72 | 6 | 1 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-74~84 | 74~84 | 7 | 0 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
