FCJ factory GYFFY Fcj Opto Tech Best Price Two FRP Aerial Outdoor Optical Fiber Cable
- group name
- Aerial Fiber Optic Cables
- Min Order
- 1 kilometer
- brand name
- FCJ Fiber Optic Products Manufacturer
- model
- GYFFY Aerial
- Nearest port for product export
- shanghai, Ningbo, Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CIF, EXW, Express Delivery
- Acceptable payment methods
- T/T, L/C, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 19:37:44 GMT
Paramtents
Certification RoHS, UL, CE, ISO9001, VDE, CCC
Brand Fcj Opto Tech
Sheath Material PE
Cable Application Aerial
Loose Tube Type PBT Central Tube Type
Transport Package Wooden Drum and Carton
Specification 2KM, 3KM，4KM
HS Code 8544700000
Service Life More Than 30years
Working Temp. -40~+60 Centigrade
Packging & Delivery
-
Min Order1 kilometer
Briefing
GYFFY Aerial put the fiber in the PBT loose tube,and two FRP as strengthen member.
Detailed
Description

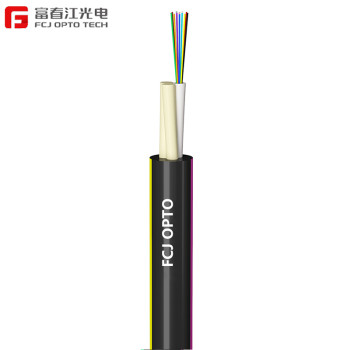

GYFFY Optical Fiber Cable , The cable structure is put the ф250μm colored fiber in the PBT loose tube, and two FRP as strengthen member, Cable surface is extruded with a PE outer sheath.
Characteristics
·Small Size and Ligth Weight
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation
Standards
GYFFY fiber Optic cable according to YD/T 901-2018,GB/T13993 ,IECA-596,GR-409,IEC794 and so on standard.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth （Class A） | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cutoff Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80,1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ºC | -20ºC to +65ºC | |||||
